Unlocking the Secrets of MOSFETs

1. Understanding the Gatekeeper

So, you're diving into the world of MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors)? Awesome! These little guys are the workhorses of modern electronics, switching signals in your phone, your computer, basically anything with a chip inside. But to really understand how they work, you gotta grapple with a key concept: threshold voltage. Think of it like the minimum password required to get into the cool kids club of electron flow. If you don't have the password, nothing happens.

In simpler terms, the threshold voltage (often abbreviated as Vth or VT) is the voltage you need to apply to the MOSFET's gate terminal to create a conducting channel between the source and drain terminals. Below this voltage, the MOSFET is essentially "off," acting like an open switch. Above it, the MOSFET starts to "turn on," allowing current to flow like a tap being opened.

Imagine a tiny dam holding back a river. The water represents electrons, and the dam represents the MOSFET. The threshold voltage is like the water level needed to overflow the dam and allow the river to flow. A little sprinkle won't do it; you need a certain level to start the cascade.

The value of the threshold voltage is crucial because it determines the switching behavior of the MOSFET. Its what sets the sensitivity of the MOSFET. Is it easily triggered, or does it require a more significant input to activate? It depends on the threshold voltage.

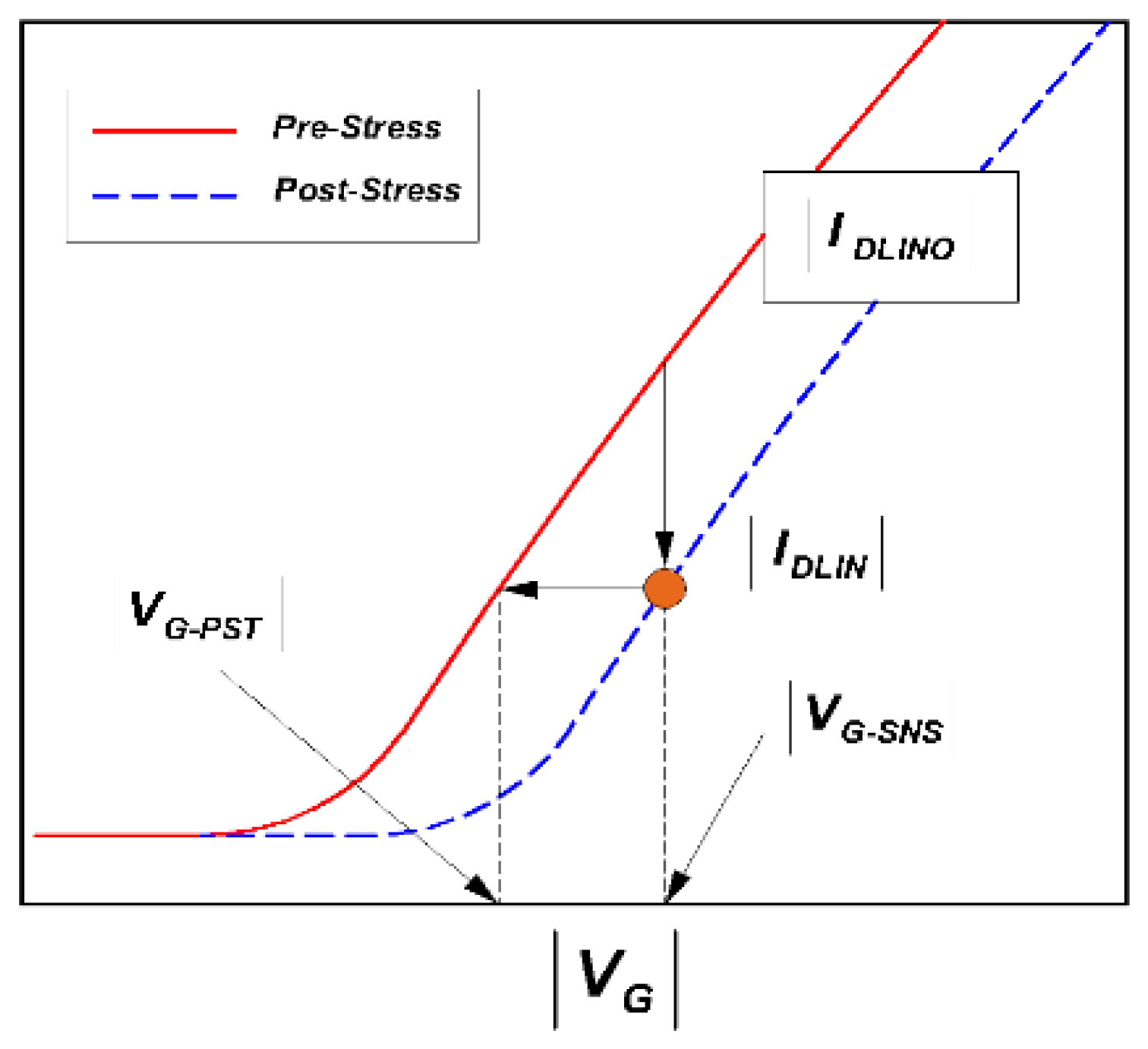

JLPEA Free FullText Threshold Voltage Degradation For NChannel 4H

Digging Deeper

2. The Channel Formation Story

Alright, let's peel back another layer. Inside a MOSFET, there's this region called the channel, which is where the current actually flows between the source and the drain. When no voltage is applied to the gate, the channel is either depleted of charge carriers (in enhancement-mode MOSFETs) or already contains them (in depletion-mode MOSFETs). It's all about the availability of those carriers.

Applying a voltage to the gate creates an electric field that influences the channel. In an enhancement-mode MOSFET (the most common type), this electric field attracts charge carriers (electrons in an NMOS, holes in a PMOS) to the channel region. As the gate voltage increases, more and more carriers are drawn in, effectively creating a conducting channel. But — and this is the key — this doesn't happen instantaneously. You need to reach that magic threshold voltage!

Before reaching the threshold voltage, the electric field is primarily involved in depleting or inverting the channel region. Once the threshold is reached, additional voltage applied to the gate starts accumulating charge carriers, and the channel becomes conductive. Its like preparing the ground for planting seeds. You need to clear away the weeds (depletion) before you can start growing crops (conduction).

Think of it like this: you're trying to fill a bucket with water, but there's a small hole in the bottom. You need to pour water in faster than it's leaking out before the water level starts to rise. The threshold voltage is analogous to the amount of water you need to pour in to overcome the leakage and start filling the bucket.

PPT Synopsys Sentaurus Tutorial For EE 130/230M Project PowerPoint

Factors Influencing Threshold Voltage

3. The Usual Suspects

Now, here's a twist: the threshold voltage isn't a fixed, immutable value etched in stone. Several factors can influence it, making it a bit of a moving target. Understanding these factors is crucial for designing reliable and predictable circuits. It's like knowing what affects the weather; you can't control it, but you can prepare for it.

One major factor is temperature. As the temperature of the MOSFET increases, the threshold voltage tends to decrease. This is due to changes in the intrinsic carrier concentration within the semiconductor material. Another significant factor is the body effect. The voltage between the source and the body (substrate) of the MOSFET can also influence the threshold voltage. Applying a reverse bias between the source and body increases the threshold voltage.

Manufacturing variations also play a role. Slight differences in the fabrication process, such as variations in oxide thickness or doping concentrations, can lead to variations in the threshold voltage from one MOSFET to another. This is why datasheets usually specify a range of threshold voltage values rather than a single, precise number.

Furthermore, the geometry of the MOSFET itself matters. Channel length and width can affect the threshold voltage. Shorter channel lengths, in particular, can lead to a phenomenon called short-channel effects, which can lower the threshold voltage. Its a complex interplay of various factors, making MOSFET design a delicate balancing act.

PPT IL 2222 MOSFET PowerPoint Presentation, Free Download ID6620820

Why Does Threshold Voltage Matter? Practical Implications

4. Design Considerations and Beyond

So, why should you care about threshold voltage? Well, it directly impacts the performance of circuits built with MOSFETs. A poorly chosen threshold voltage can lead to a circuit that doesn't switch properly, consumes too much power, or is unreliable. Think of it as choosing the right size engine for a car; too small, and it won't get you anywhere; too big, and it's just wasteful.

For example, if the threshold voltage is too high, the MOSFET might not turn on completely, resulting in reduced current drive and slower switching speeds. On the other hand, if the threshold voltage is too low, the MOSFET might turn on unintentionally, leading to increased leakage current and higher power consumption. It's a balancing act, and choosing the right threshold voltage is critical for optimizing circuit performance.

In digital circuits, the threshold voltage determines the logic levels and noise margins. Ensuring sufficient noise margin is crucial for reliable operation, as it provides a buffer against unwanted noise signals that could cause the circuit to malfunction. A well-chosen threshold voltage helps maintain robust logic levels and prevent erroneous switching.

Furthermore, threshold voltage is a critical parameter in analog circuits. It affects the gain, linearity, and stability of amplifiers and other analog building blocks. Precisely controlling and compensating for variations in threshold voltage is essential for achieving high-performance analog circuits. Basically, getting the threshold voltage right is the key to unlocking the full potential of MOSFETs in a wide range of applications.

Understanding Mosfet Threshold Voltage And Its Characteristics

Measuring Threshold Voltage

5. Practical Techniques

Okay, enough theory. How do you actually measure the threshold voltage of a MOSFET? There are several techniques, each with its own advantages and limitations. The most common method involves measuring the drain current (Id) as a function of the gate-source voltage (Vgs) while keeping the drain-source voltage (Vds) constant. It's like checking the speedometer while gradually pressing the gas pedal.

By plotting Id versus Vgs, you can identify the point where the drain current starts to increase significantly. This point corresponds to the threshold voltage. Often, a tangent is drawn to the curve at the point of maximum slope, and the Vgs value where the tangent intersects the Vgs axis is taken as the threshold voltage. This method provides a relatively simple and accurate way to determine the threshold voltage.

Another technique involves using a transconductance method. Transconductance (gm) is the change in drain current for a given change in gate-source voltage. By plotting gm versus Vgs, you can find the point where the transconductance reaches its maximum value. This point is often close to the threshold voltage, and it can be used to estimate the threshold voltage with reasonable accuracy.

Advanced techniques, such as charge-based measurements and capacitance-voltage (C-V) measurements, provide more precise and detailed information about the threshold voltage and other MOSFET parameters. These techniques are often used in research and development to characterize new MOSFET designs and optimize device performance. But for most practical applications, the simple Id-Vgs method is sufficient. You can even use a curve tracer or a semiconductor parameter analyzer to automate the measurement process and obtain accurate results quickly. Its all about selecting the right tool for the job.
